变频专用EMC滤波器
|
◆ 产品及应用 ● 优秀的传导滤波效果 ● 用于抑制变频器产生之电磁干扰，减少变频器输出端对外界的耦合干扰 ● 有效降低IGBT输出的高频谐波，解决变频器干扰电机的问题；延长电机使用寿命 ● 抑制dv/dt，缓解变频器输出的尖峰电压对电机造成的伤害 ● 用于降低变频器输出端长电缆产生的射频干扰，提高设备可靠性和抗干扰性 |

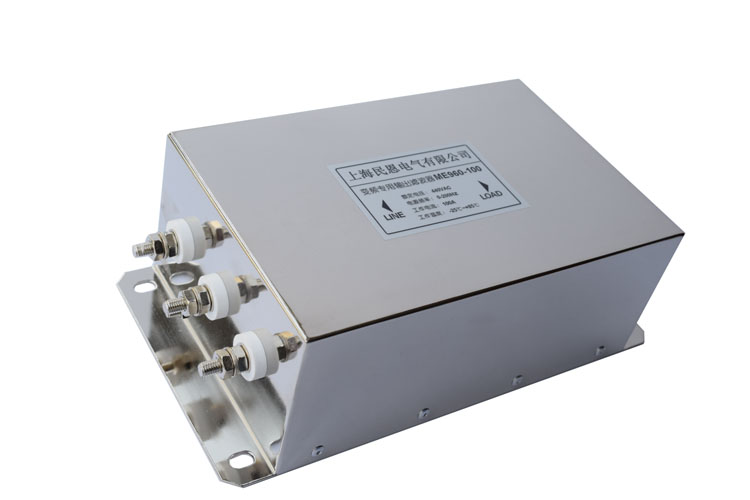

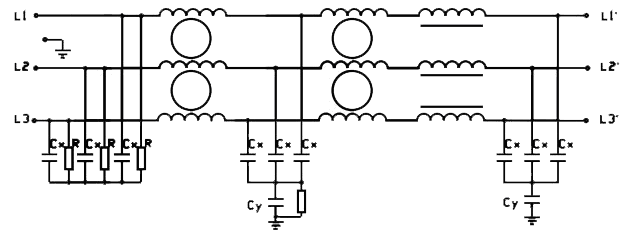

ME960系列 |
| 额定电压 | 440VAC | 额定电流@40℃ | 5A~1600A | |
| 试验电压 | 线-线 | 2250VDC | 工作频率 | 0-200Hz |
| 线-地 | 2700VDC | 开关频率 | 16KHz max | |
| 绝缘电阻 | ＞200MΩ@500VDC | 气候类别 | 25/085/21 | |
| 产品型号 |
额定电流 @40℃ |
变频器功率 (KW) |
外型尺寸 | 端接方式 | 重量（g） | |
 |
 |
|||||
| ME960-5 | 5A | 0.75/1.5 | N2 | M4 | --- | 1100 |
| ME960-8 | 8A | 2.2/3.7 | N2 | M4 | --- | 1100 |
| ME960-16 | 16A | 5.5/7.5 | N5 | M4 | --- | 1500 |
| ME960-30 | 30A | 11/15 | N5 | M6 | --- | 1500 |
| ME960-45 | 45A | 18.5/22 | N10 | M6 | --- | 2500 |
| ME960-75 | 75A | 30/37 | N12 | M8 | --- | 7000 |
| ME960-100 | 100A | 45 | N12 | M8 | --- | 7000 |
| ME960-120 | 120A | 55 | N12 | M8 | --- | 7000 |
| ME960-150 | 150A | 75 | N15 | M10 | --- | 10000 |
| ME960-200 | 200A | 90 | N15 | M10 | --- | 10000 |
| ME960-250 | 250A | 110 | N15 | M10 | --- | 10000 |
| ME960-300 | 300A | 125/132/150 | N30 | --- | Bar | 14000 |
| ME960-420 | 420A | 160/210/220 | N30 | --- | Bar | 14000 |
| ME960-500 | 500A | 250/260 | N60 | --- | Bar | 16000 |
| ME960-600 | 600A | 280/315 | N60 | --- | Bar | 16000 |
| ME960-800 | 800A | 400 | N80 | --- | Bar | 20000 |
| ME960-1000 | 1000A | 500 | N90 | --- | Bar | 22000 |
| ME960-1100 | 1100A | 550 | N90 | --- | Bar | 22000 |
| ME920-1200 | 1200A | 600 | N90 | --- | Bar | 23000 |
| ME920-1600 | 1600A | 700 | N100 | --- | Bar | 23000 |

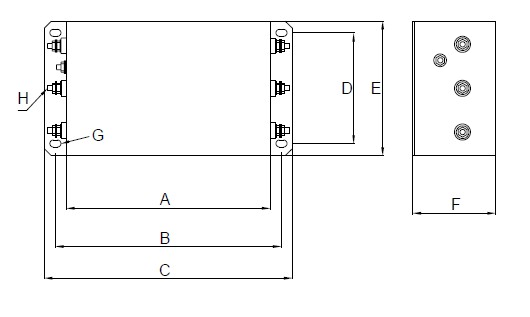

| A | B | C | D | E | F | G | H | |
| N2 | 110 | 125±1.0 | 140 | 70±0.5 | 93 | 56 | 5.3*7 | M4 |
| N5 | 150 | 168±1.5 | 186 | 85±0.5 | 108 | 60 | 6.4*9 | M6 |
| N10 | 200 | 220±1.5 | 240 | 100±1.0 | 125 | 80 | 6.4*9 | M6 |
| N12 | 260 | 286±2.5 | 314 | 140±1.0 | 175 | 107 | 8.8*14 | M8 |
| N15 | 300 | 326±3.0 | 354 | 150±1.5 | 185 | 115 | 8.8*14 | M10 |

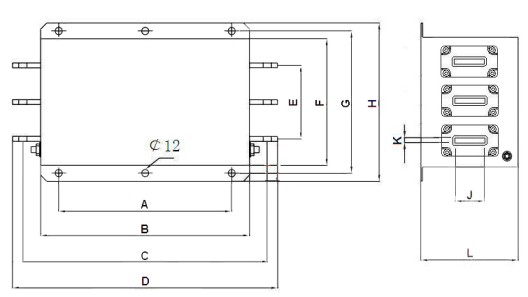

| A | B | C | D | E | F | G | H | K | J | L | |
| N30 | 240±2.0 | 300 | 360 | 394 | 120 | 210 | 235±2.0 | 260 | 5.0 | 25 | 115 |
| N60 | 290±2.0 | 350 | 410 | 444 | 120 | 210 | 230±2.0 | 256 | 6.0 | 30 | 162 |
| N80 | 290±2.0 | 350 | 446 | 475 | 120 | 210 | 230±2.0 | 256 | 8.0 | 40 | 162 |
| N90 | 290±2.0 | 350 | 456 | 485 | 120 | 210 | 230±2.0 | 256 | 10 | 50 | 162 |
| N100 | 290±2.0 | 350 | 456 | 485 | 120 | 210 | 230±2.0 | 256 | 10 | 60 | 162 |
